Configure an Amazon Web Services Data Connection (Customer-Hosted)

If you have data in an Amazon Web Services (AWS) S3 bucket and want to be able to use that data in questions in LiveRamp Clean Room, you can create a customer-hosted Amazon Web Services data connection.

Note

You can connect AWS to LiveRamp Clean Room using a LiveRamp-hosted AWS S3 bucket instead of using your own. For more information, see "Configure an Amazon Web Services Data Connection (LiveRamp-Hosted).

A customer-hosted Amazon Web Services data connection can be used in the following clean room types:

  • Hybrid

  • Confidential Computing

    Note

    These instructions are for clean room partners. Clean room owners need to use the CSV Catalog data connection type for Confidential Computing clean room (contact your LiveRamp account team for more information).

  • Amazon Web Services

Note

For more information on clean room types, see "Configure Clean Rooms".

After you’ve created the data connection and Clean Room has validated the connection by connecting to the data in your cloud account, you will then need to map the fields before the data connection is ready to use. This is where you specify which fields can be queryable across any clean rooms, which fields contain identifiers to be used in matching, and any columns by which you wish to partition the dataset for questions.

Note

To utilize partitioning for cloud storage data connections, you need to organize your data into folders that reflect the partition columns. LiveRamp encourages users to use Hive-style partitioning, typically by date (such as s3://bucket/path/date=YYYY-MM-DD/). For more information, see "Partition a Dataset in LiveRamp Clean Rooms".

After fields have been mapped, you’re ready to provision the resulting dataset to your desired clean rooms. Within each clean room, you’ll be able to set dataset analysis rules, exclude or include columns, filter for specific values, and set permission levels.

To configure a customer-hosted Amazon Web Services (AWS) data connection, see the instructions below.

Overall Steps

Perform the following overall steps to configure a customer-hosted AWS data connection in LiveRamp Clean Room:

  1. Add the credentials

  2. Create a data connection

  3. Map the fields

For information on performing these steps, see the sections below.

Guidelines

Review the following guidelines before starting the setup process:

  • LiveRamp Clean Room supports CSV and Parquet files, as well as Delta tables and multi-part files. All files should have a file extension. All CSV files must have a header in the first row. Headers should not have any spaces or special characters and should not exceed 50 characters. An underscore can be used in place of a space.

  • The folder where the data files are dropped should include hive-style date formatting: "date=yyyy-MM-dd".

Add the Credentials

To add credentials:

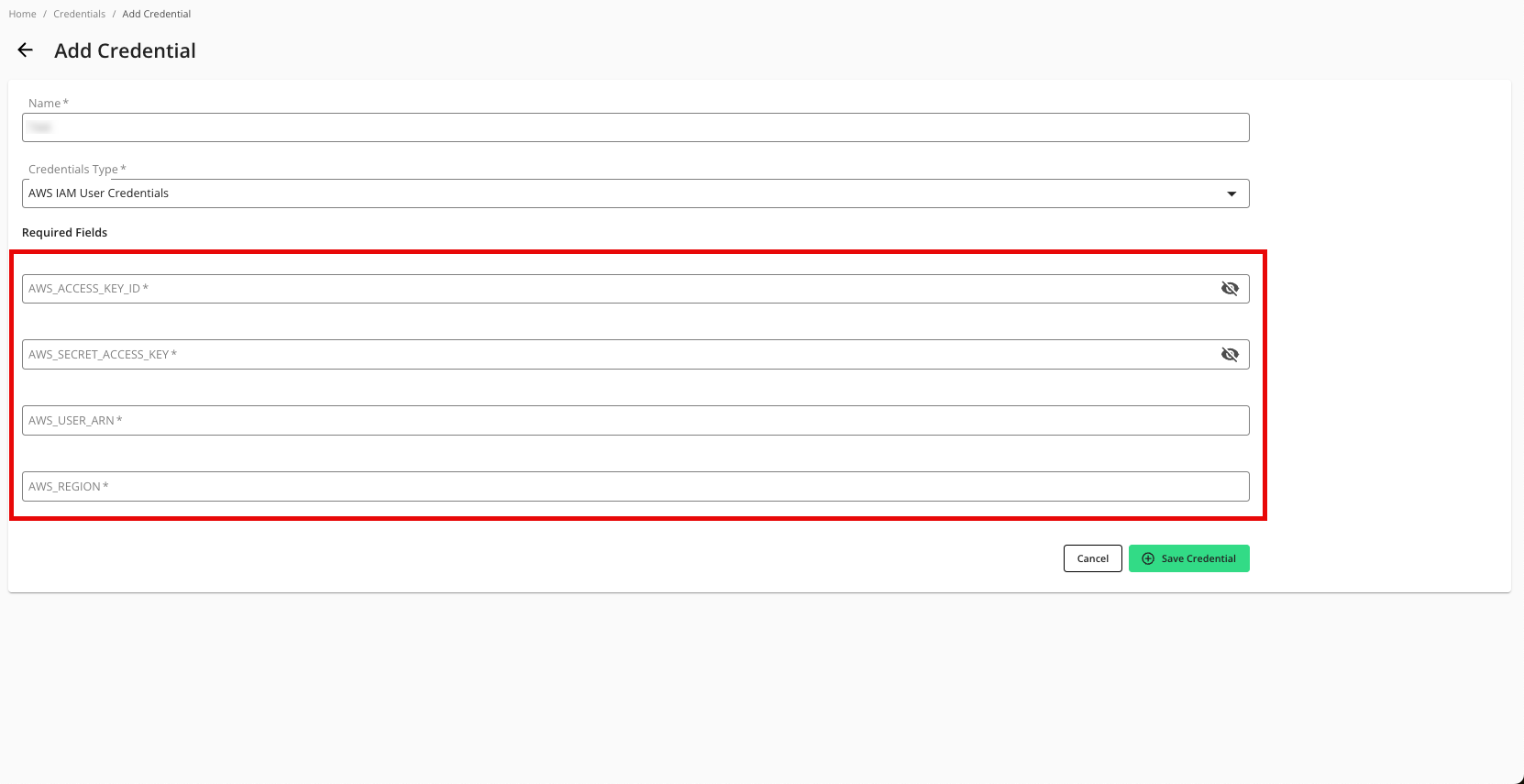

  1. From the navigation menu, select Clean Room → Credentials to open the Credentials page.


  2. Click Create Credential.


  3. Enter a descriptive name for the credential.

  4. For the Credentials Type, select "AWS IAM User Credentials".

  5. Enter the following parameters associated with your AWS configuration:


    • AWS Access Key ID

    • AWS Secret Access Key

    • AWS User ARN

    • AWS Region

  6. Click Save Credential.

Create the Data Connection

After you've added the credentials to LiveRamp Clean Room, create the data connection:

Note

  • if your cloud security limits access to only approved IP addresses, talk to your LiveRamp representative before creating the data connection to coordinate any necessary allowlisting of LiveRamp IP addresses.

  • When you create the data connection, the dataset type is set to Generic by default.

  1. From the navigation menu, select Clean Room → Data Connections to open the Data Connections page.


  2. From the Data Connections page, click Create Data Connection.

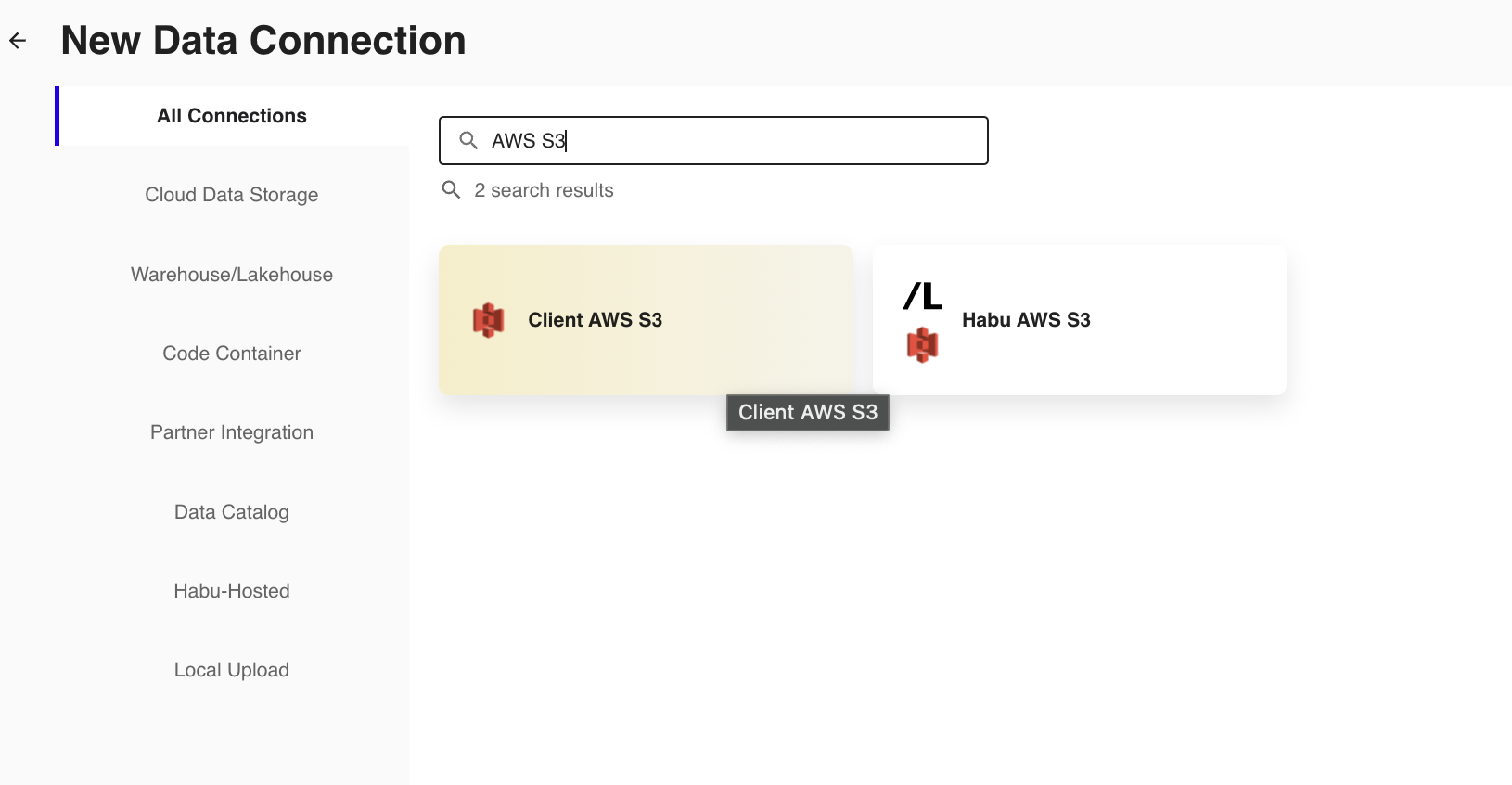

  3. From the New Data Connection screen, select "Client AWS S3".

    Screenshot 2024-03-28 at 21.18.39.png

  4. Select the credentials created in the previous procedure from the list.

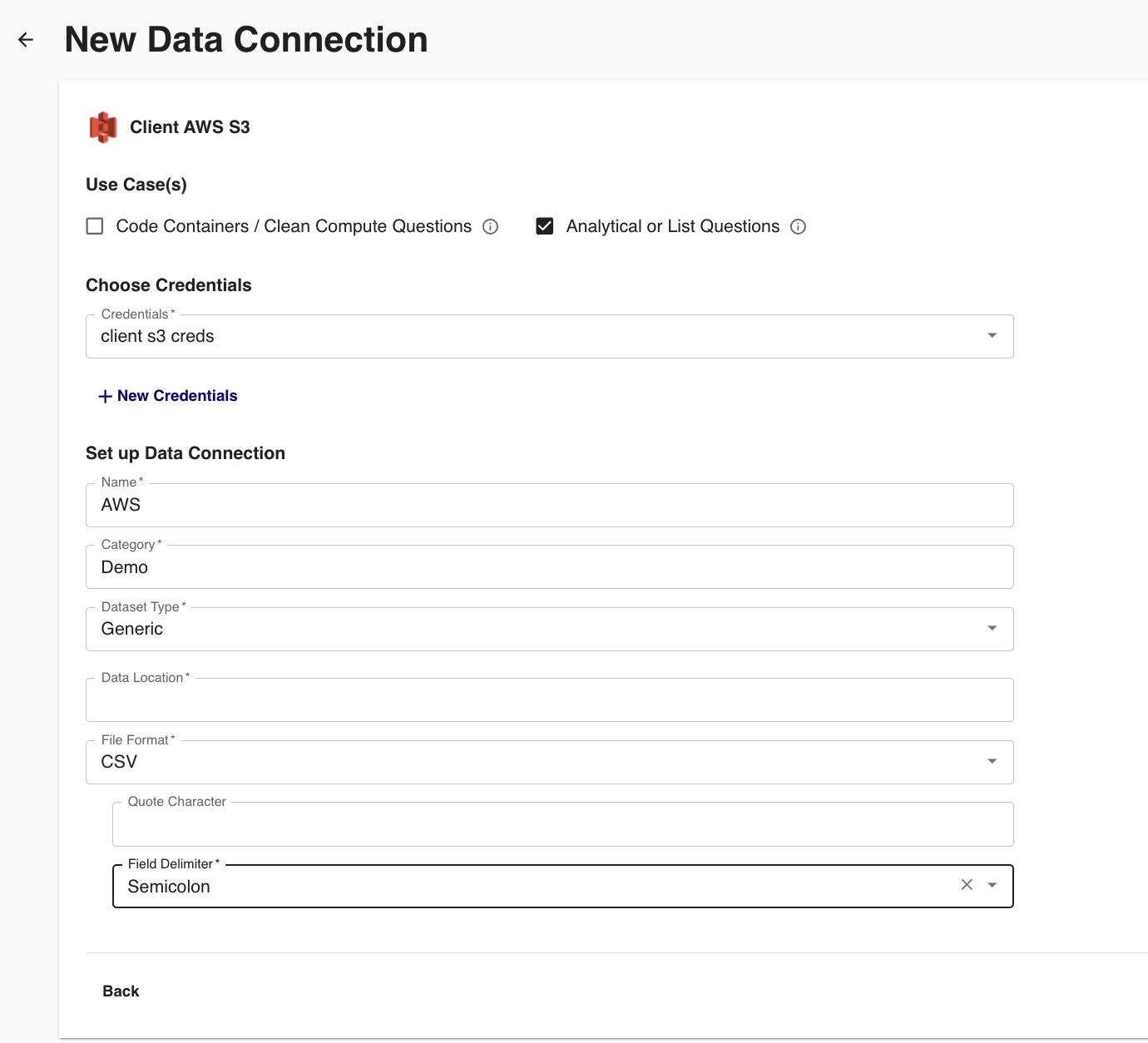

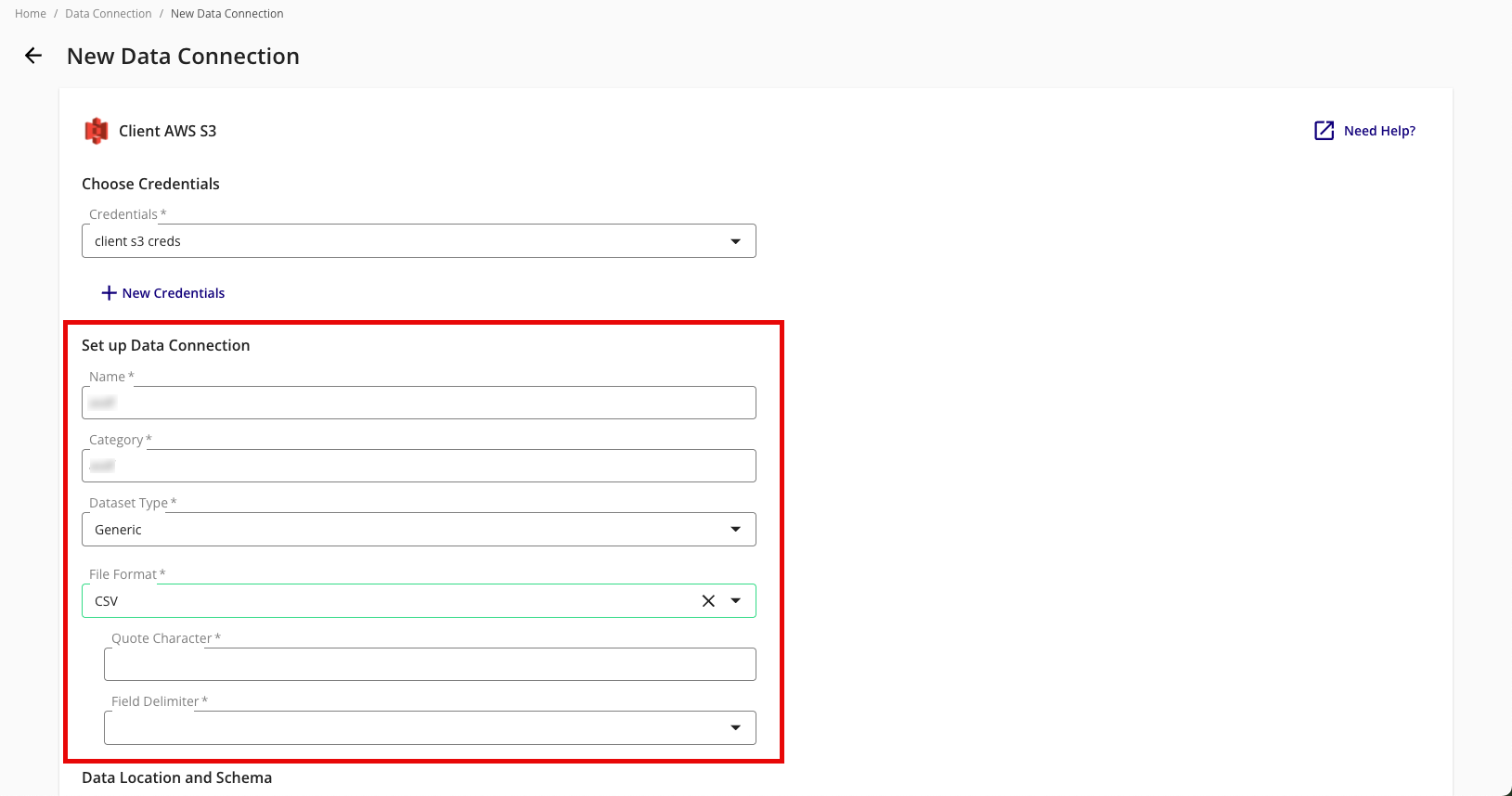

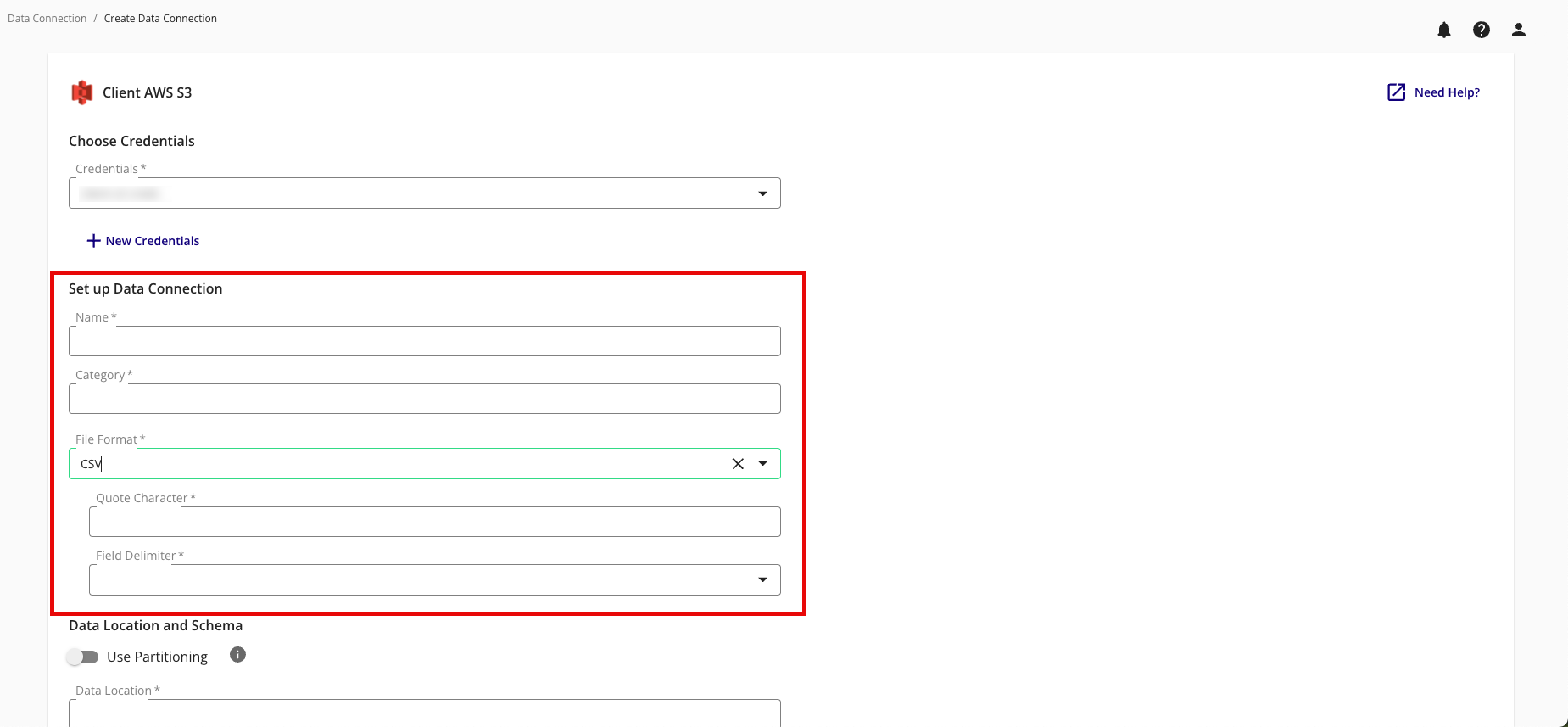

  5. Complete the following fields in the Set up Data Connection section:


    • Name: Enter a name for the data connection (this will be the name for the dataset that you'll provision to clean rooms).

    • Category: Enter a category of your choice.

    • File Format: Select CSV, Parquet, or Delta.

      Note

      • All files must have a header in the first row. Headers should not have any spaces or special characters and should not exceed 50 characters. An underscore can be used in place of a space.

      • If you are uploading a CSV file, avoid double quotes in your data (such as "First Name" or "Country").

    • Quote Character: If you're uploading CSV files, enter the quote character you'll be using (if any).

    • Field Delimiter: If you're uploading CSV files, select the delimiter to use (comma, semicolon, pipe, or tab).

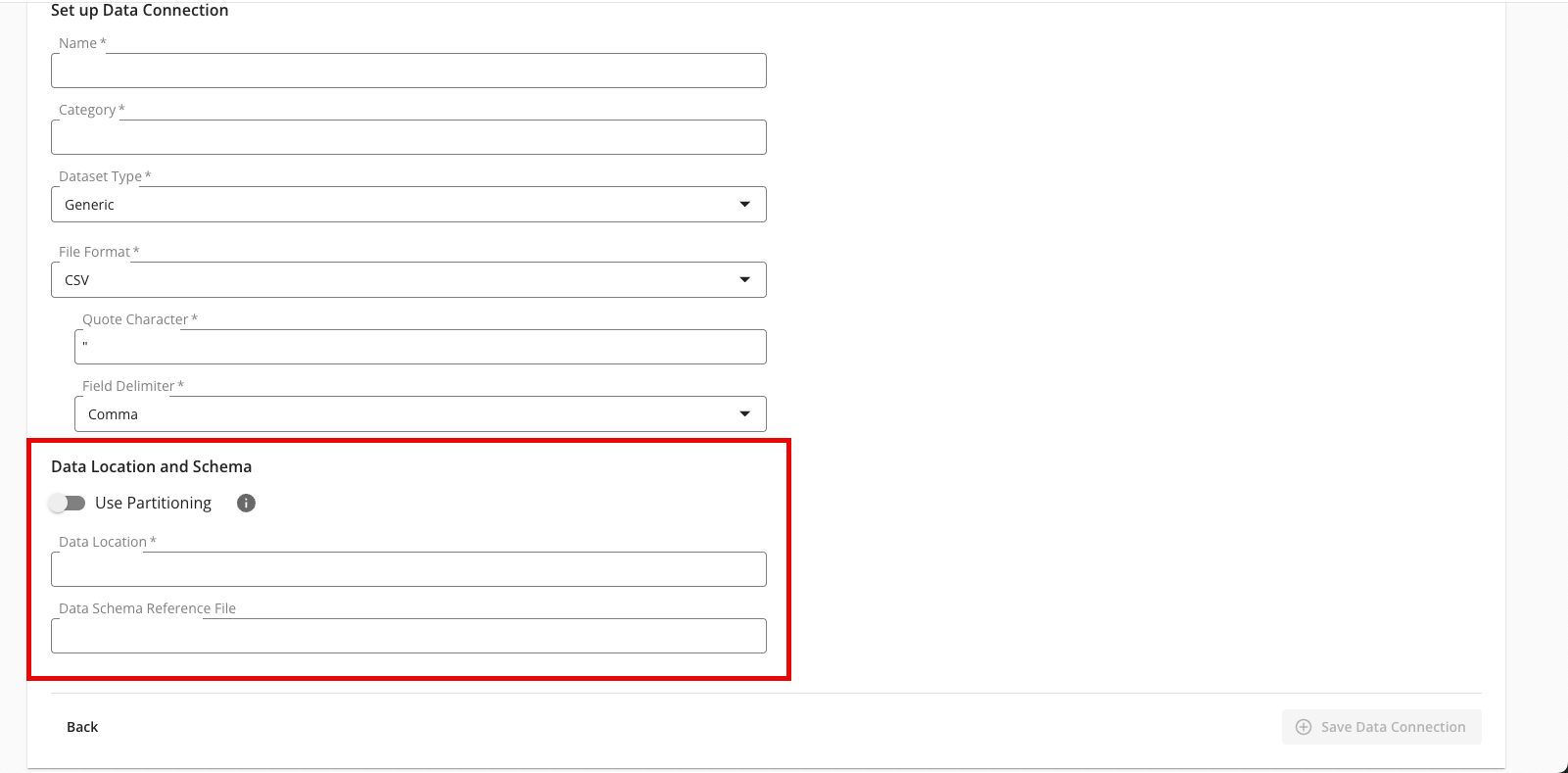

  6. Complete the following tasks and fields in the Data Location and Schema section:


    • To use partitioning on the dataset associated with the data connection, slide the Use Partitioning toggle to the right.

      Note

      If the dataset uses partitioning, the dataset can be divided into subsets so that data processing occurs only on relevant data during question runs, which results in faster processing times. When using partitioning, a temporary dataset is required to be entered below.

    • Data Location: Enter the AWS S3 bucket location.

      • The location should be the entire file path of your data location.

      • Example using hive-style partitioning (preferred): "s3://clean-room-client-org-123ab456/uploads/purchase_events/date=yyyy-MM-dd/"

      • Example using a date macro: "s3://clean-room-client-org-123ab456/uploads/purchase_events/{yyyy-MM-dd}/" (the macro will be replaced by the true date of the upload in AWS S3)

      Note

      • The data location must start with "s3://" and end with a forward slash ("/").

      • Make sure that the bucket path you use for the data connection is distinct from any bucket paths you use for existing AWS export destination connections in LiveRamp Clean Room. For example, to use the same bucket for both exports and data connections, make sure to use a distinct folder in that bucket for exports and a distinct folder for each data connection.

    • Data Schema Reference File: If you enabled partitioning above, enter the location of a data schema reference file.

      Note

      • The data schema reference file name must start with "s3://" and end with a valid file extension (such as ".csv").

      • The data schema reference file must be hosted in a static location and must have been uploaded within the last seven days.

  7. Review the data connection details and click Save Data Connection.

    Note

    All configured data connections can be seen on the Data Connections page.

  8. If you haven't already, upload your data files to your specified location.

When a connection is initially configured, it will show "Verifying Access" as the configuration status. Once the connection is confirmed and the status has changed to "Mapping Required", map the table's fields.


You will receive file processing notifications via email.

Map the Fields

Once the above steps have been performed in Google Cloud Platform, perform the overall steps in the sections below in LiveRamp Clean Room.

Note

Before mapping the fields, we recommend confirming any expectations your partners might have for field types for any specific fields that will be used in questions.

  1. From the row for the newly created data connection, click the More Options menu (the three dots) and then click Edit Mapping.

    The Map Fields screen opens, and the file column names auto-populate.

  2. For any columns that you do not want to be queryable, slide the Include toggle to the left.

    Note

    Ignore the field delimiter fields because this was defined in a previous step.

  3. Click Next.

    The Add Metadata screen opens.


  4. For any column that contains PII data, slide the PII toggle to the right.

    Note

    If you data contains a column with RampIDs, do not slide the PII toggle for that column. Mark the RampID column as a User Identifier and select "RampID" as the identifier type. If the data contains a RampID column, no other columns can be enabled as PII.

  5. Select the data type (field type) for each column (for more information on supported field types, see "Field Types for Data Connections").

  6. For columns that you want to partition, slide the Allow Partitions toggle to the right.

  7. If a column contains PII, slide the User Identifiers toggle to the right and then select the user identifier that defines the PII data.

    Note

    When you select "Raw Email" as the user identifier for an email column, those email addresses will be automatically SHA256 hashed.

  8. Click Save.

Your data connection configuration is now complete and the status changes to "Completed".

You can now provision the resulting dataset to your desired Hybrid, Confidential Computing, or Amazon Web Services clean room.
